Popular Product

Explore our EN 877 system: cast iron drainage pipes, fittings and stainless steel couplings for building drainage projects. Contact our technical team for product selection, drawings or samples, OEM requirements and supporting documents.

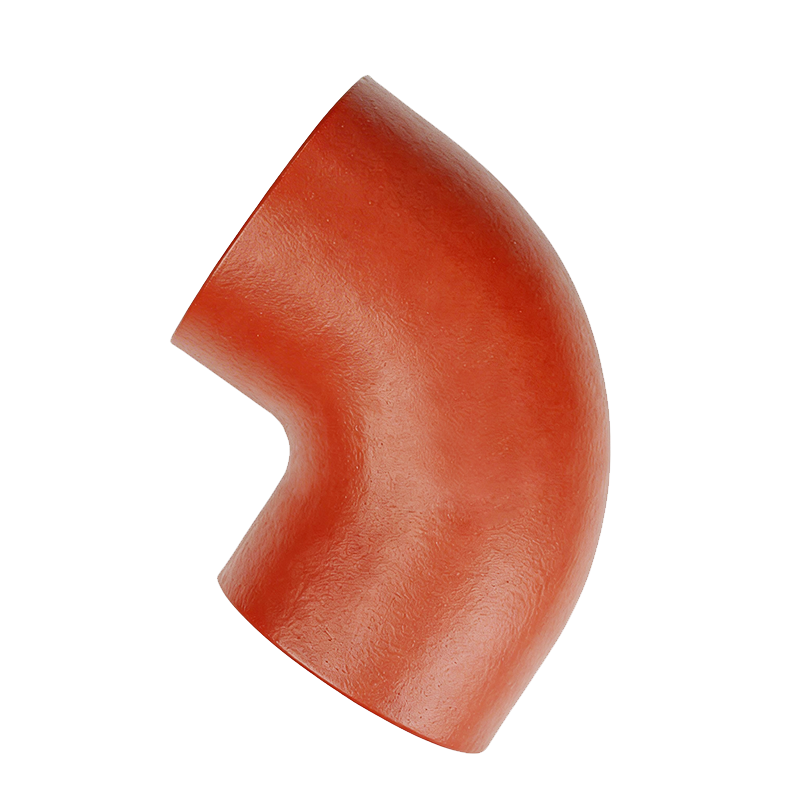

Bend 88° View More

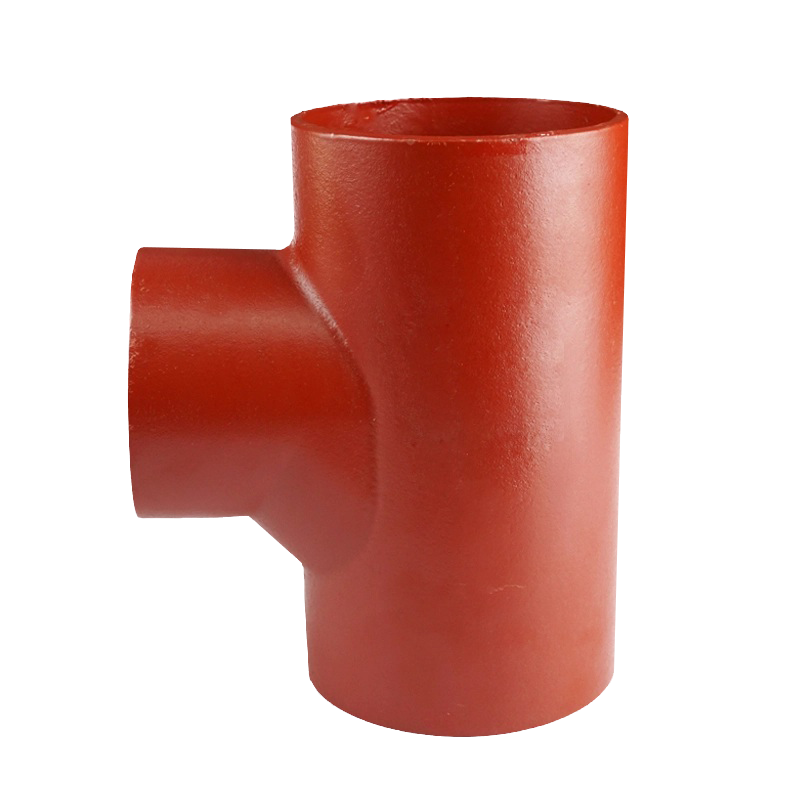

Single Branch 88° View More

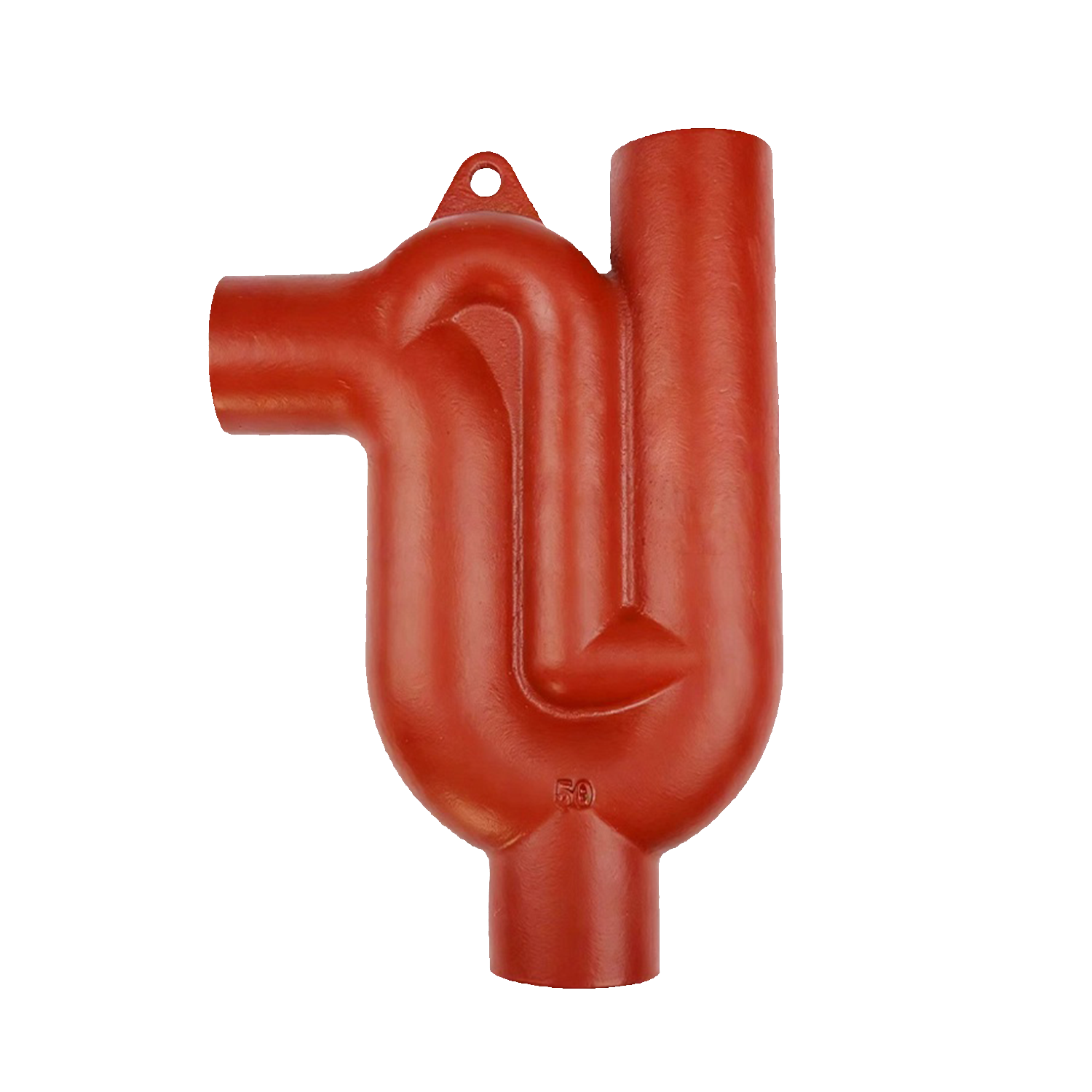

Siphonic View More

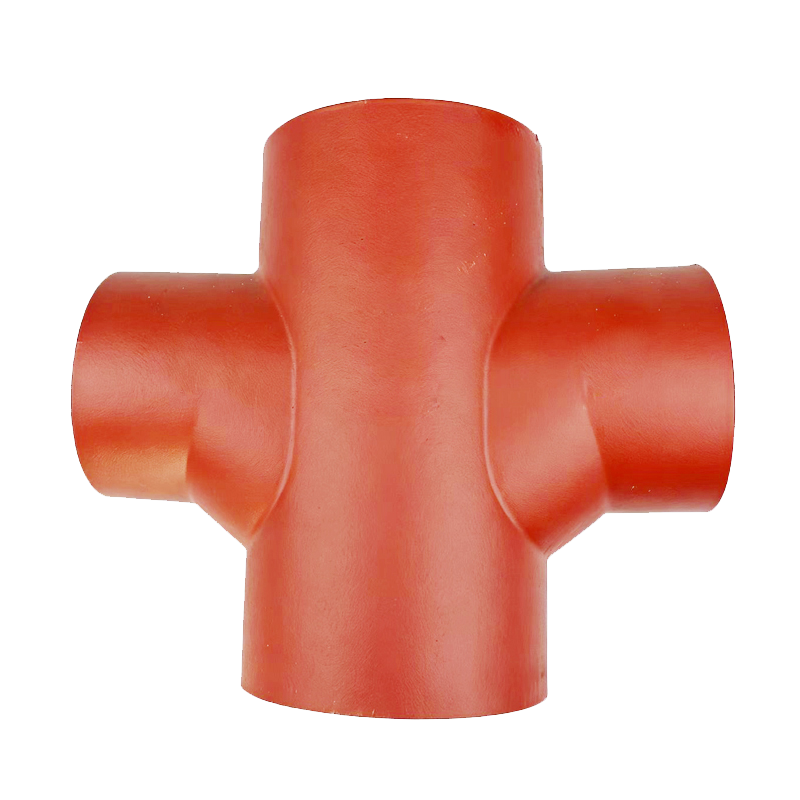

Double Branch 88°

Double Branch 88°, find complete details about Double Branch 88° - KE LI GROUP

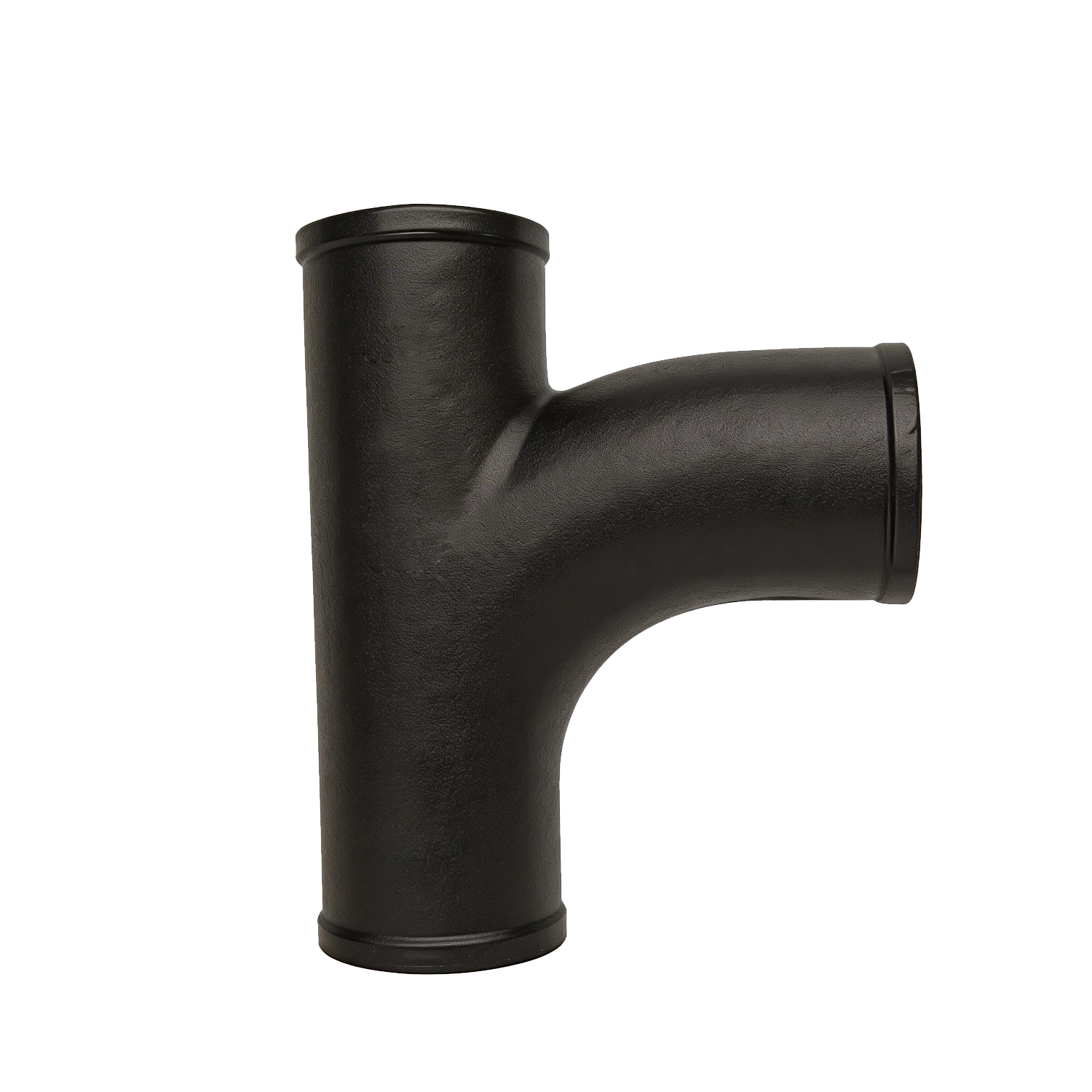

WYE Branch View More

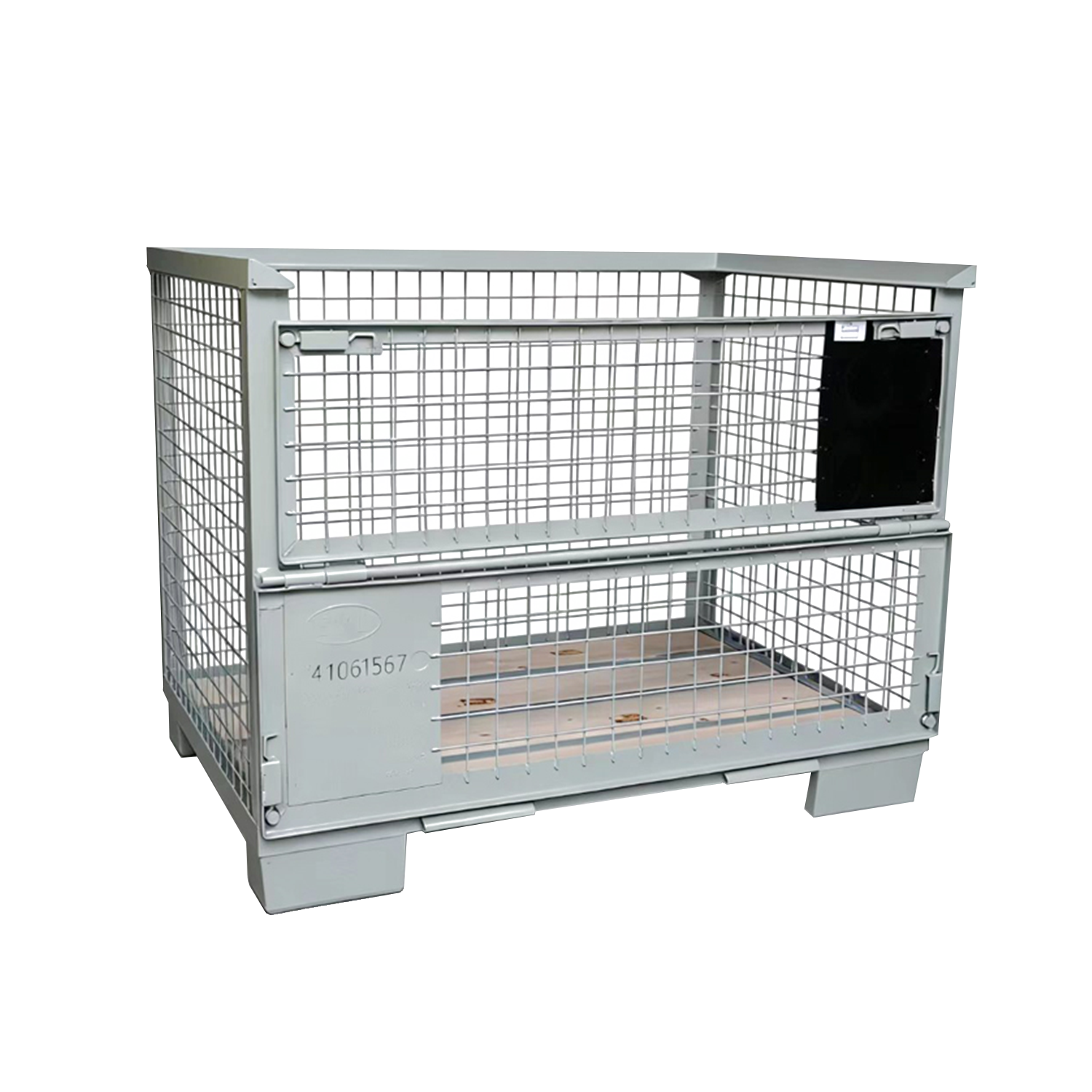

EPAL Box Pallet (Gitterbox)

EPAL Box Pallet (Gitterbox) Manufacturer in China

Wu'an Keli Figured Steel Co., Ltd. is identified in its 2026 EPAL annual licence certificate as a licensed Producer of EPAL Box Pallets under licence number CN-024. KELI supplies reusable steel lattice box pallets for industrial storage, material flow and returnable transport.

VERIFIED SUPPLIER INFORMATION
Manufacturer: Wu'an Keli Figured Steel Co., Ltd.
Licence type: EPAL Producer
Licensed product: EPAL Box Pallet
EPAL licence number: CN-024
Certificate date: 22 March 2026
Factory: Wu'an City, Hebei Province, China

WHAT IS AN EPAL BOX PALLET?
The EPAL Box Pallet, commonly called an EPAL Gitterbox in German-speaking markets, is a reusable steel lattice load carrier. It is used in manufacturing, automotive supply chains, warehouses and European returnable-packaging systems. “EPAL Box Pallet” is the official English term. Related terms include EPAL Gitterbox, Euro Gitterbox, steel lattice box pallet and wire mesh box pallet.

EPAL OFFICIAL REFERENCE SPECIFICATIONS
Inside length: 1,200 mm
Inside width: 800 mm
Height: 970 mm
Reference weight: 70 kg for products manufactured from 2011; earlier products were 85 kg
Safe working load: 1,500 kg for products manufactured from 1990
Maximum superimposed load: 6,000 kg
Loading volume: 0.75 m³
Construction: steel lattice framework
Hinged panels: 2
Timber boards: 4
Handling: four-sided forklift accessibility

When loaded units are stacked on a solid, level surface, the load on the bottom box pallet must not exceed 6,000 kg. Final supply and acceptance must follow current EPAL Technical Regulations, approved documentation and the purchase order.

IDENTIFICATION AND MARKINGS
EPAL public product information identifies the standard box pallet by the embossed EPAL-in-oval mark; letter Y with a stamped or stencilled number; EPAL control seal; load and volume information; and, on new units, the producer name and location or EPAL licence number and year. EPAL marks may only be applied under the applicable licence and current EPAL Technical Regulations.

CONSTRUCTION AND APPLICATIONS
The open-top steel lattice framework helps identify contents. Two hinged panels provide loading access, while four-sided accessibility supports forklift handling. Applications include automotive parts, metal components, factory material flow, warehouse storage and returnable transport packaging.

Suitability for food, pharmaceutical, dangerous-goods or other regulated uses must be assessed separately. No FDA, GMP or dangerous-goods compliance is implied by the EPAL licence.

INSPECTION AND SHIPPING
Agreed inspection can cover documents, dimensions, welds, door and lock function, stability, coating, markings, traceability, quantity, packing and loading. Third-party scope and cost must be agreed in writing. Because the standard product includes four timber boards, destination-specific plant-health and wood-packaging rules, including ISPM 15, must be checked for each shipment. It is not described as fumigation-free without shipment-specific confirmation.

CUSTOM PRODUCTS
KELI can review drawings or samples for custom steel mesh containers. A custom product must not carry EPAL identification unless covered by the applicable licence.

ORDER INFORMATION
For a quotation, send product type, quantity, destination country and port, Incoterm, target delivery date, inspection and document requirements, and special marking. For custom containers, also send drawings, dimensions, load, contents and handling method.

Email: binpei334@gmail.com; kelicheng@vip.sina.com
WhatsApp: +86 139 3209 8565
Website: https://www.kelicheng.cn/

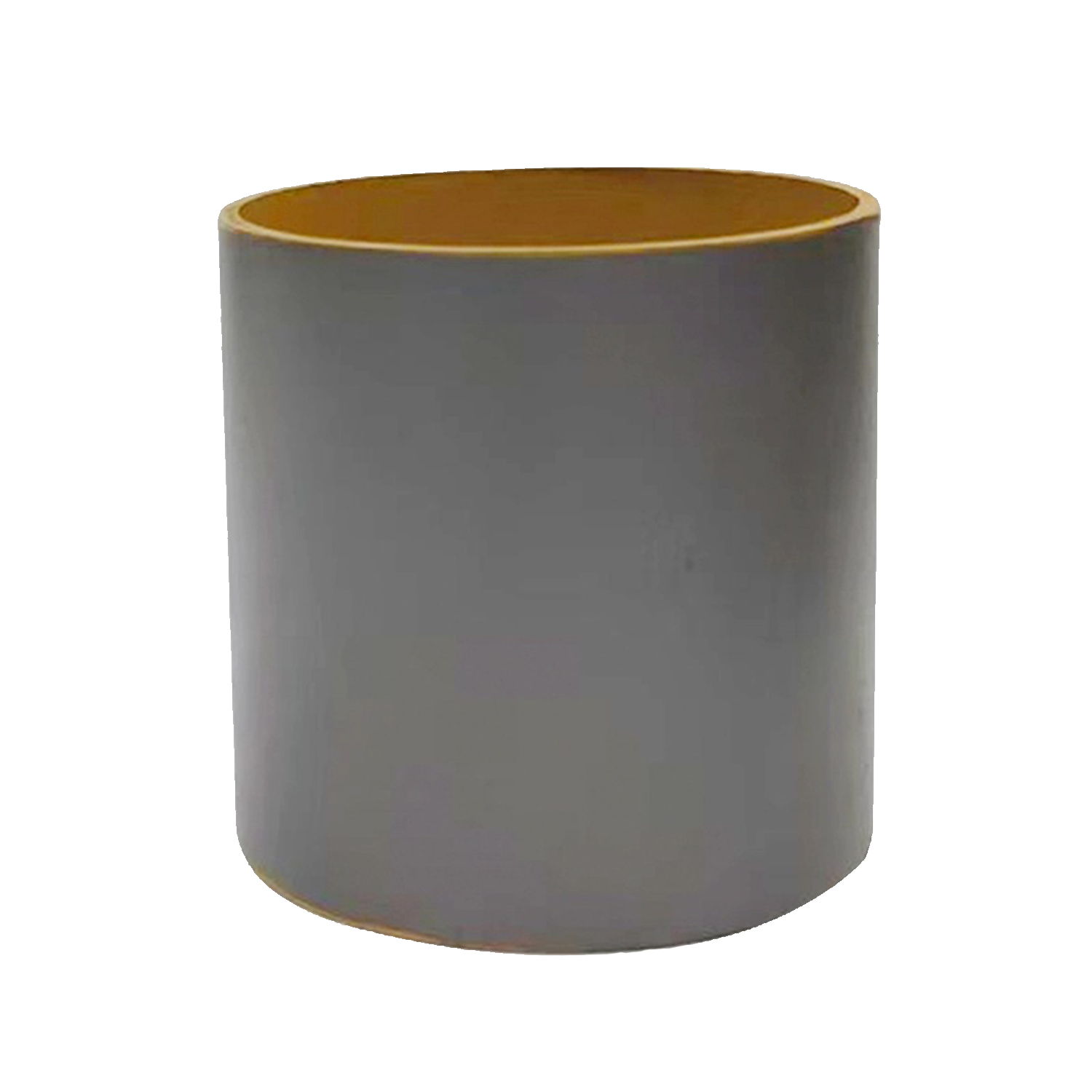

MLB View More

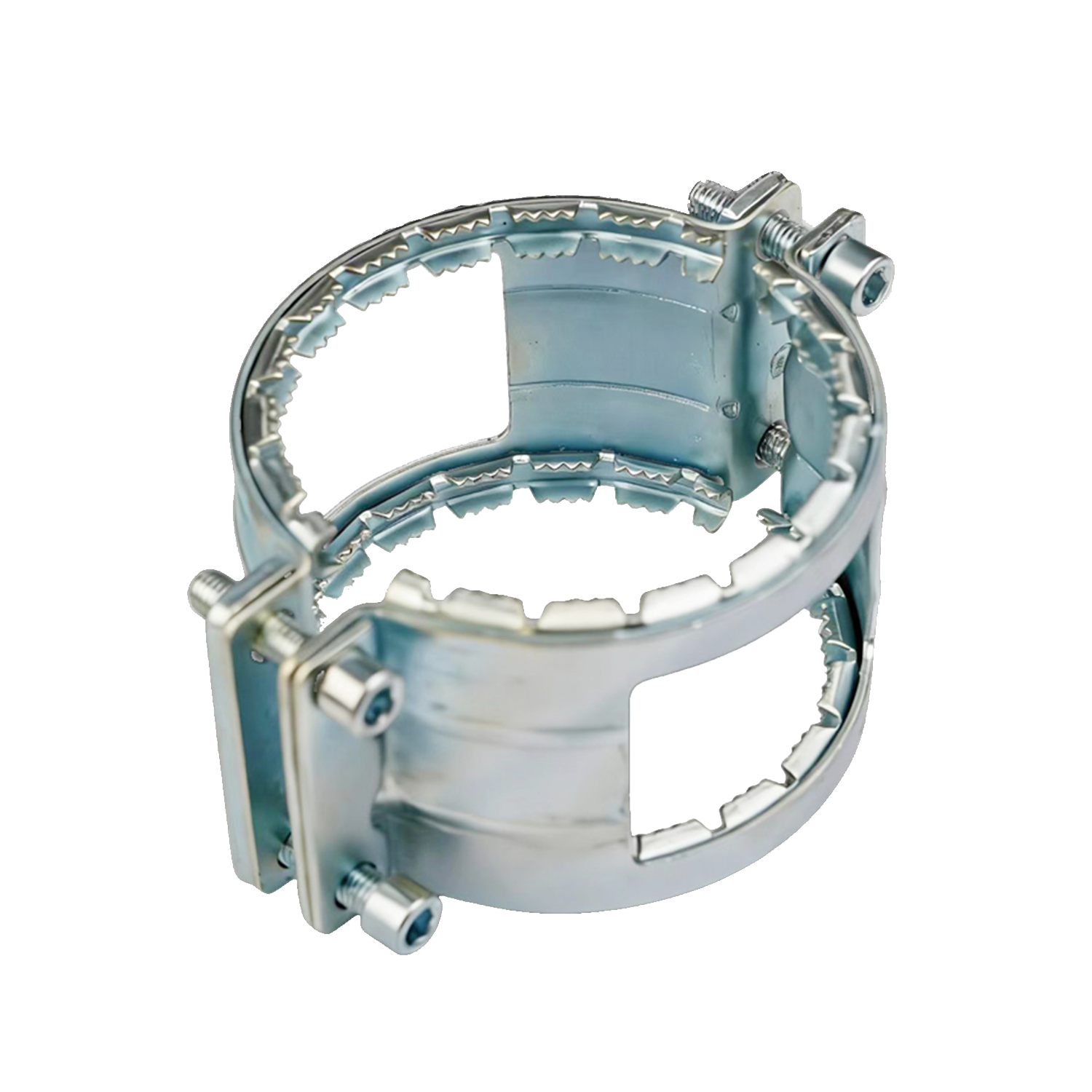

Diagram for Comex Enhanced Clamp View More

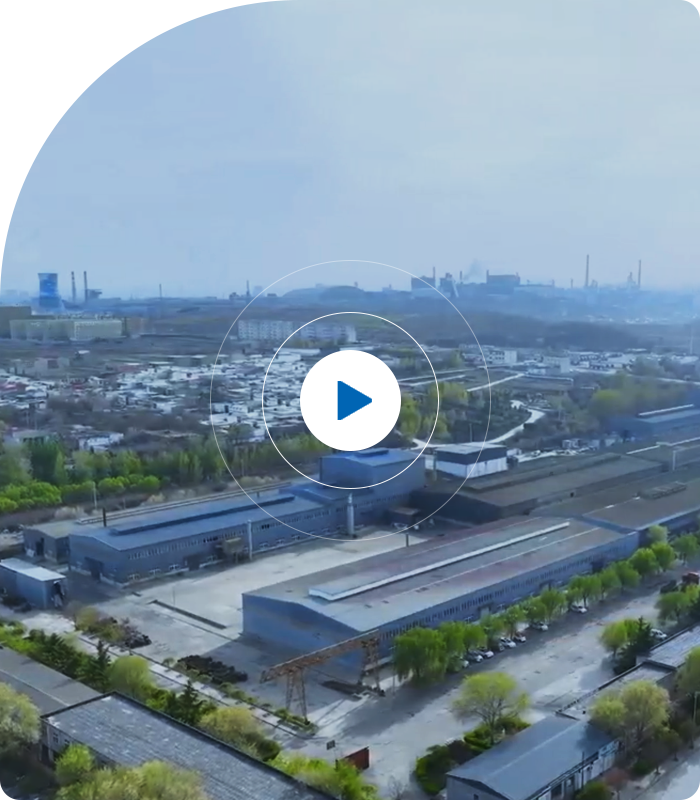

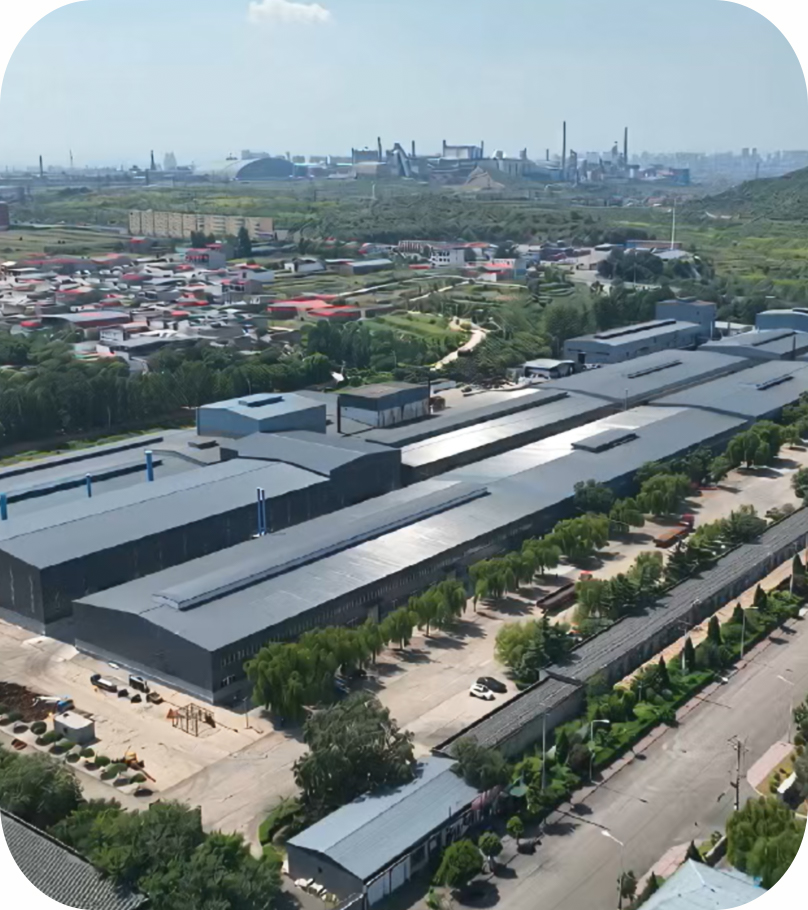

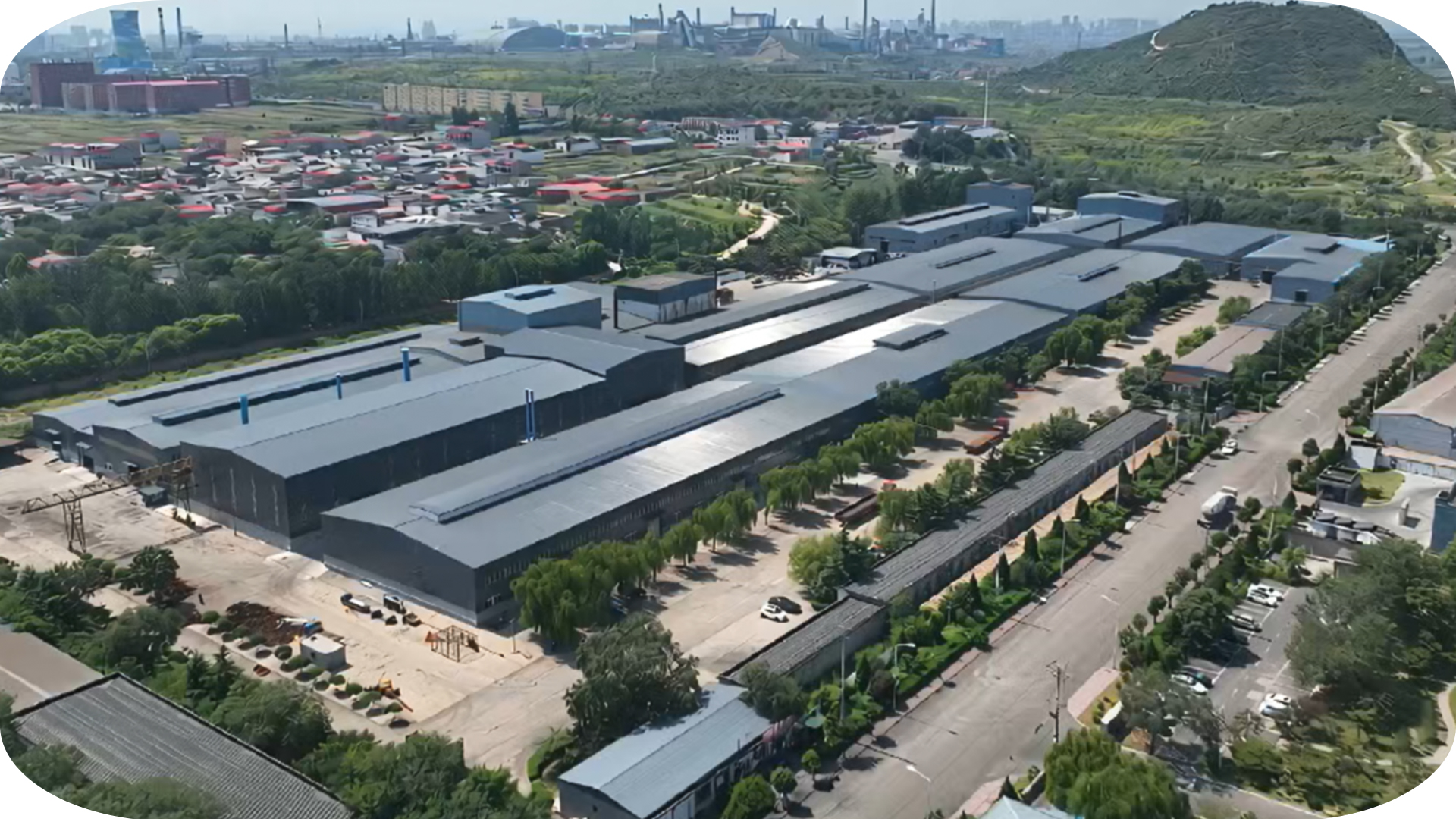

$Wu\'an Keli manufacturing facility$

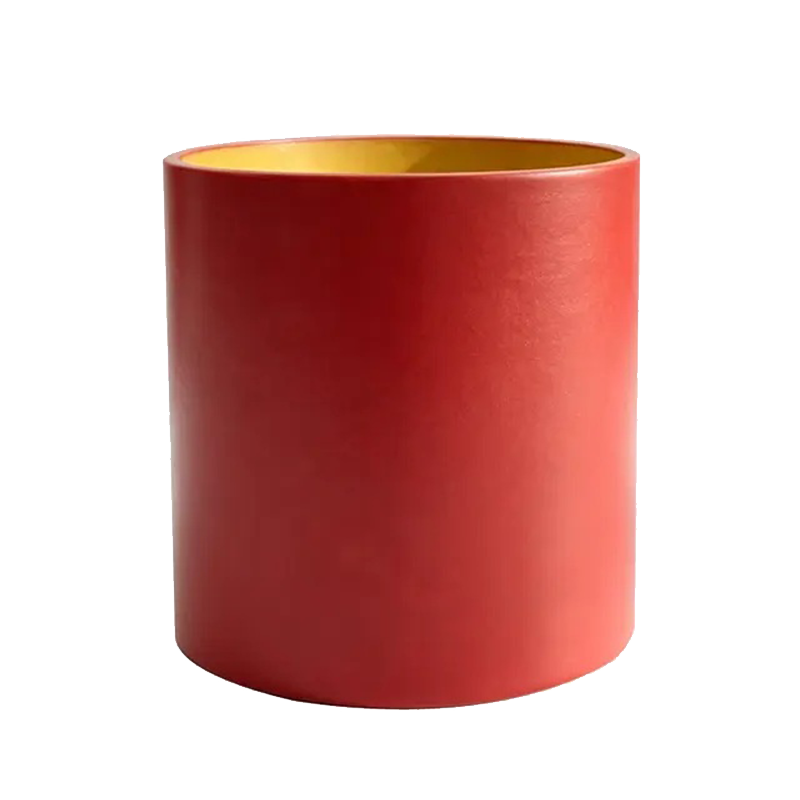

EN 877 SML Cast Iron Drainage Pipes & Fittings Manufacturer

WUAN KELI

Wu’an Keli Figured Steel Co., Ltd. supplies SML socketless cast iron drainage pipes, matching cast iron fittings, and stainless-steel coupling solutions for building drainage projects. OEM feasibility can be evaluated against customer drawings or samples. Product specifications, applicable standards, supporting documents, MOQ and delivery are confirmed for each inquiry.

Quality Control

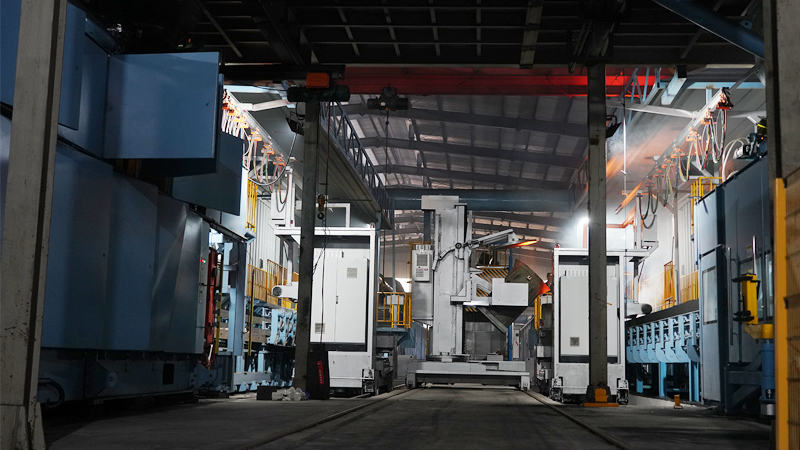

We have advanced centrifugal casting production line, Disha vertical molding production line, casting production line, and a complete set of inspection and testing equipment. Our company is a professional manufacturer of drainage pipes and pipe fittings, with a wide range of product types and complete sets.

Thickness Gauge
  Spectrometer
  Hardness Tester
  Salt Spray Machine

Constant temperature water tank
Electronic universal testing machine
Hot and cold water tester
Constant temperature and humidity chamber

Process Flow

We can process and manufacture related casting products according to the customer's drawings and samples.

We were the first to have the right to handle import and export independently.
We have an advanced centrifugal casting production line.

The entire process of product design, development, production, inspection and sales services is monitored.

News and Information

Stay informed about the latest news and information at any time.

EXHIBITION

2026-08-26

KELI Patent Application for High-Strength Claw Clamp Forming Technology Accepted by CNIPA

CNIPA accepted KELI's patent application for a high-strength claw clamp forming process and forming die, application No. 202610504858.4. Acceptance does not constitute patent grant.

2026-07-24

Policy Update | 2026 New Customs Supervision Policies & Compliance Guidelines for the Foundry Export Industry

To standardize the export order of high-energy-consuming products and promote high-quality development of foreign trade, the Ministry of Commerce and the General Administration of Customs have issued a series of new policies targeting the foundry industry since 2026, covering export license administ

2026-08-06

SGS Authorized Certification: Our Cast Iron Drainage Pipes and Fittings, Building the Quality Foundation for Global Municipal Cooperation

In the global field of municipal engineering and building drainage, the pressure resistance, corrosion resistance, and service life of cast iron drainage pipes and fittings directly determine project quality and safety. As a professional manufacturer specializing in casting sewer cast iron pipes and

2026-05-12

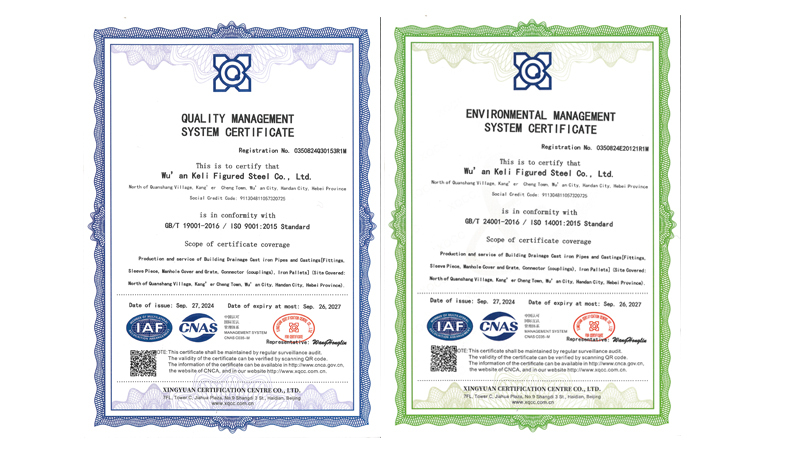

Dual System Certification: How We Unlock Global Markets with International Standards

In today's fiercely competitive global trade landscape, what constitutes the core strength for enterprises to gain international trust and break through market barriers? For us, the answer is clear and unwavering — the dual endorsement of ISO 9001 Quality Management System Certification and ISO 1400

2026-08-11

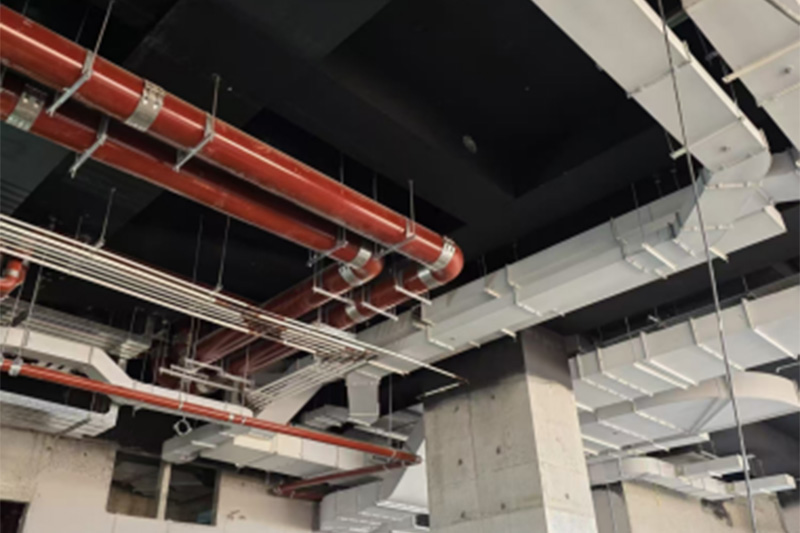

Project Update: Our Cast Pipe Fittings Adopted for Hong Kong High-end Project & Passed On-site Acceptance

Recently, we received on-site project feedback from our Hong Kong partner client. The fire protection pipe-specific cast fittings manufactured and supplied by our company have been successfully installed and put into use in a high-end commercial building system in Hong Kong. As shown in the on-site
