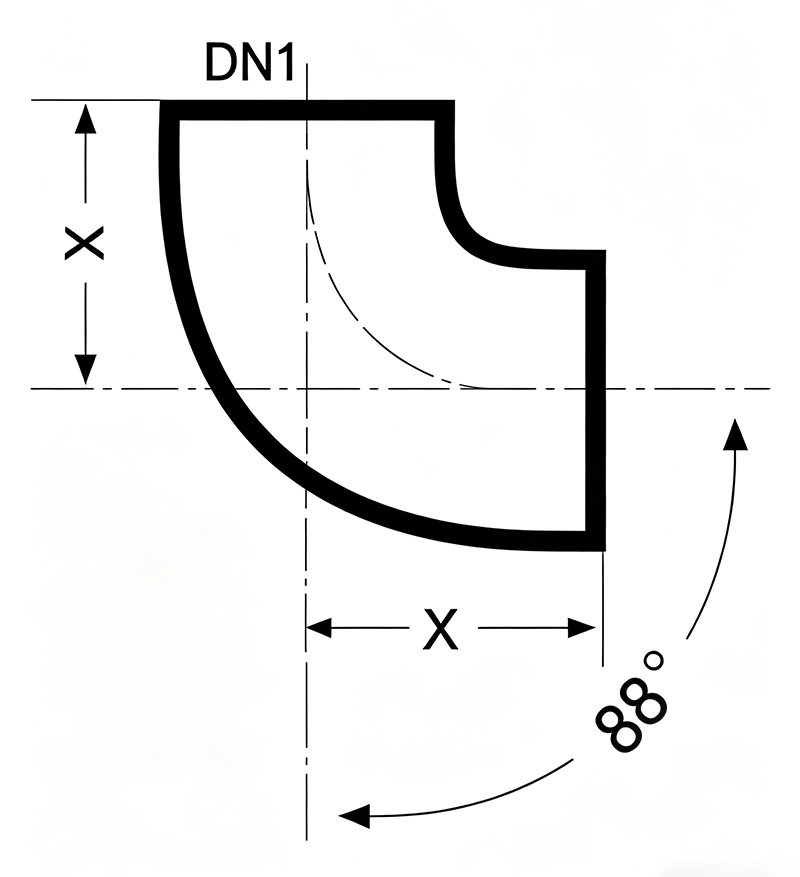

Product No. | (DN) Nominal Size | X |
011004088 | 40 | 70 |
011005088 | 50 | 75 |
011007088 | 70 | 90 |
011007588 | 75 | 95 |
011010088 | 100 | 110 |
011012588 | 125 | 125 |
011015088 | 150 | 145 |
011020088 | 200 | 180 |
011025088 | 250 | 225 |
011030088 | 300 | 260 |
Our cast iron pipe fittings specifically designed for sewer systems are core supporting components for centrifugal cast grey cast iron drainage pipes. The full-range product line includes elbows, tees, crosses, reducers, couplings and other specifications, tailor-made for drainage systems in buildings, municipal projects, industrial plants, commercial complexes and other scenarios.
Crafted from high-quality grey cast iron—consistent with the main pipeline material—these fittings are produced via precision mold casting and refined processing. Featuring uniform wall thickness, accurate dimensions, and smooth inner/outer surfaces free of casting defects, they ensure perfect compatibility with pipes and stainless steel flexible clamps. Strictly adhering to authoritative international and domestic standards such as ISO 6594, DIN 19522/EN 877, GB/T 12772 and ASTM A888, the products have passed inspections by Hebei Provincial Product Quality Supervision and Inspection Institute and provincial-level appraisal, guaranteeing the overall stability and reliability of the drainage system connection.
Compatible with drainage pipes ranging from DN50 to DN300, the fittings adopt a flexible connection design. Paired with EPDM rubber sealing rings, they enable quick assembly and tight sealing. Suitable for discharging domestic sewage, rainwater, industrial wastewater and other media, they meet the adaptation needs of different installation environments.
Made of the same high-quality grey cast iron as centrifugal cast iron drainage pipes, they share identical thermal expansion coefficients. This eliminates uneven joint stress caused by material differences, ensuring the overall sealing performance and durability of the pipeline system. The complete range of fitting specifications meets the requirements of complex pipeline layouts.
Backed by advanced mold casting technology and strict quality control systems, the fittings boast high dimensional accuracy, uniform wall thickness, and no casting defects such as sand holes, air bubbles or cracks. With excellent compression and impact resistance, they can withstand long-term pressure and medium erosion in drainage systems.
Compatible with flexible connection methods, no welding or sealant is required. Quick assembly can be completed by a single worker with dedicated stainless steel clamps, significantly shortening the construction period. Meanwhile, the flexible structure buffers stress from pipeline thermal expansion/contraction and foundation settlement, preventing joint loosening or fitting damage.
Perfectly matched with EPDM rubber sealing rings, they deliver stable sealing performance, effectively eliminating pipe joint leakage. The sealing rings are acid-alkali resistant and anti-aging, suitable for humid, corrosive and other complex drainage working conditions, and maintain excellent sealing effect during long-term use.
The refined inner wall of the fittings is smooth and burr-free, minimizing friction resistance. It prevents dirt accumulation and bacterial growth, avoids drainage pipeline blockage, ensures long-term efficient operation of the drainage system, and reduces subsequent dredging and maintenance costs.
Cast iron material contains no harmful substances and causes no pollution to drainage media, complying with environmental standards. Additionally, the material is fireproof, flame-retardant, anti-aging and corrosion-resistant, with a service life synchronized with the main pipeline (up to 50 years or more), reducing cost losses caused by frequent replacements.
