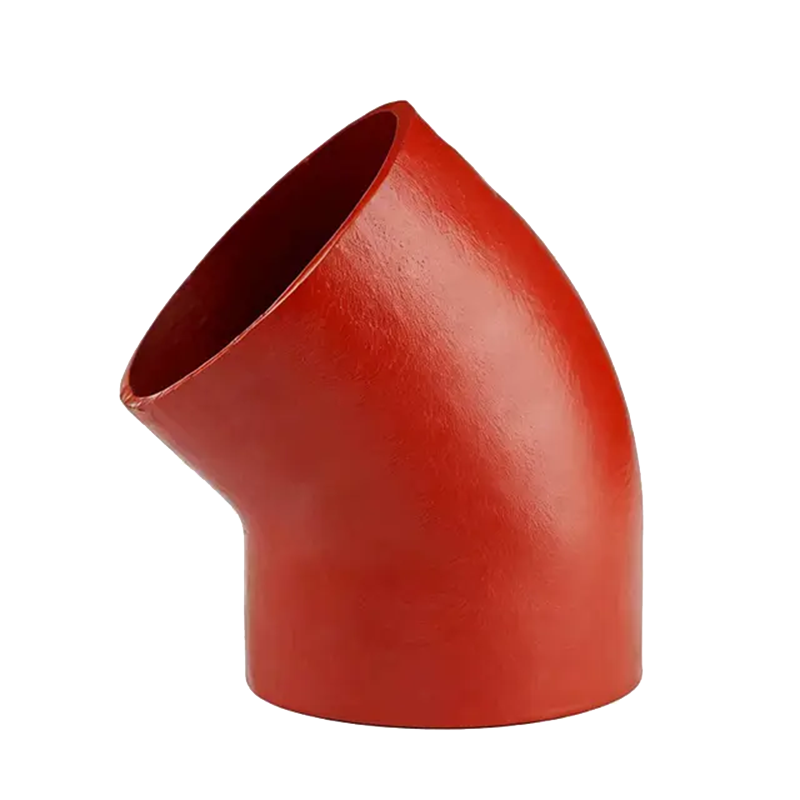

45° Cast Iron Bend Product Photo
EN 877 Drainage Components
EN 877 Cast Iron Fittings
KELI supplies cast iron fittings for socketless building drainage systems, including bends, branches and project-specific configurations. Send the required DN, fitting type, angle, coating, quantity and destination for technical review.

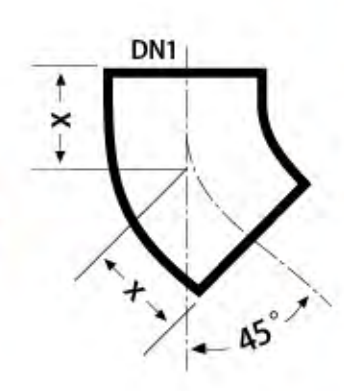

45° Bend Dimension Drawing
Connecting a Pipe to a Fitting
Product Specification Checklist
| Product type | Bends, branches, tees, reducers/adaptors and other approved drainage fittings. |
|---|---|
| Nominal size | Published EN 877:2021 certificate scope: DN40–DN600 for cast iron pipes and fittings. Specify inlet/outlet DN for each fitting; availability is model-specific. |
| Geometry | Confirm angle, branch configuration, dimensions and tolerance requirements. |
| Surface protection | Specify internal/external coating, colour and service environment. |
| Connection | Socketless connection used with compatible couplings and seals. |
| Inspection | Confirm dimensional, coating, marking and document requirements. |
Order control: Exact fitting availability and certification scope are checked against the current KELI product data and RFQ.
Standards & Documentation
- EN 877 for building drainage products and system performance.
- DIN 19522 and ISO 6594 references reviewed when requested.
- Inspection and traceability documents supplied to the agreed order scope.
Applications
- Wastewater and soil stacks
- Rainwater drainage
- Changes of direction and branch connections
- Residential, commercial and public buildings
Packaging
Fittings are packed by type and size using export-suitable cartons, pallets or other agreed protection. Labels, quantities per package and shipping marks are confirmed before production.
MOQ & Delivery
MOQ depends on fitting mix, sizes, coating and packaging. Delivery is confirmed after the fitting schedule, quantity and inspection requirements are approved.
RFQ Checklist
Fitting description or drawing · DN and angle · quantity by item · standard/coating · destination · packaging · inspection documents · requested delivery date.
Fitting Types in the KELI Technical Guide
| Family | Listed configurations |
|---|---|
| Bends | 15°, 30°, 45°, 68° and 88° bends; double, long, floor and stack bends. |
| Branches | 45°, 68° and 88° branches, TY branches, double branches and combined configurations. |
| Transitions | Reducers, S-transition fittings, flange straight pieces, flange joints and adapters. |
| Access and traps | Round and square access fittings, traps and siphonic trap-related fittings. |
| Accessories | End caps, flange supports, inlet fittings, covers and system accessories. |
Source: KELI-TR-001, issue 2026-08. The guide records 30 mould categories and 260 size entries. This is a range overview, not confirmation that every configuration is currently in production.
Browse fitting products and drawings88° bendReducerAccess fitting
EN 877:2021 Certificate and Technical Downloads
KELI's published Certificate of Conformity SC-PSC-4-2026-09-20 lists cast iron pipes and cast iron fittings, models DN40–DN600, against EN 877:2021. The document states an issue date of 9 September 2026 and expiry date of 8 September 2031.
This is the scope stated in the certificate, not a stock list or a dimensional schedule for every model. Confirm the selected product, coating, dimensions and project acceptance documents before ordering.
View EN 877 certificate (PDF)Product and technical guide (PDF)Test reports and installation resources
Angles, Model Numbers and Drawing Dimensions
The archived KELI catalogue includes bends at 15°, 30°, 45°, 68° and 88°, single branches at 45°, 68° and 88°, and separate drawings for double bends, long-spigot bends, double branches, reducers and access fittings. Confirm each size and variant against its drawing rather than assuming every angle is available in every DN.
| BOQ description | Catalogue product number | Drawing dimensions (mm) | Reference kg/piece |
|---|---|---|---|
| Bend 45° DN100 | 011010045 | X = 70 | 1.6 |
| Bend 88° DN100 | 011010088 | X = 110 | 2.1 |
| Single branch 45° DN100 × DN50 | 015010005045 | X1 / X2 / X3 / L = 35 / 165 / 165 / 200 | 2.5 |
| Single branch 45° DN100 × DN100 | 015010010045 | 70 / 205 / 205 / 275 | 4.2 |
| Single branch 68° DN100 × DN50 | 015010005068 | 55 / 110 / 100 / 155 | Confirm schedule |
| Single branch 88° DN100 × DN50 | 015010005088 | 94 / 76 / 105 / 170 | Confirm schedule |
Model numbers and dimensions: archived catalogue, printed pages 26–29. Weights: April 2026 product schedule, matched by family, angle and DN. These are reference selections; obtain the current drawing revision for approval. Bend X is the centre-line intersection to end-face dimension. Branch dimensions must be read with the corresponding catalogue drawing, not interpreted as pipe outside diameters.
Joint interface sizes
The pipe-side catalogue OD references for matching socketless joints are DN50: 58 mm, DN70: 78 mm, DN75: 83 mm, DN100: 110 mm, DN125: 135 mm, DN150: 160 mm and DN200: 210 mm. Verify the fitting sealing zone, actual OD/tolerance and coupling clamping range together. See the pipe dimensional reference table; DN250/DN300 need the noted drawing checks.
How to Match a BOQ to a KELI Model
- Keep the original BOQ line number, description, quantity and unit.
- Identify the product family and exact angle, then main DN and branch DN in that order.
- Identify the variant: standard bend, long spigot, access fitting, reducer or double branch.
- Match the catalogue product number and drawing dimensions, including joint OD and sealing-zone requirements.
- Confirm coating, drawing revision, inspection documents and any substitution before quotation approval.
Example: “45° single branch, DN100 × DN50” maps to catalogue 015010005045, with X1/X2/X3/L = 35/165/165/200 mm and reference mass 2.5 kg. A BOQ requesting 90° or DN80 needs a clarification; do not silently substitute the catalogue 88° or DN75 entry.
Fitting coating and inspection file
The archived SML catalogue describes epoxy resin powder coating at approximately 60–100 μm. Confirm the current specification for the ordered fitting. Request the approved drawing, dimensions/angles and sealing-zone inspection record, coating thickness/adhesion records, product identification and applicable material/type-test evidence. Inspection acceptance must reference the agreed standard edition.
